PID Intelligent Control Water Supply System With Constant Pressure Frequency

Price : usd 18660/sets 1-9 sets

MOQ : 1 set

Payment Terms : D/A,D/P,T/T

outlet size : DN65-DN150, Customized

voltage : 220V-380V, Customized

power : 2.2kw--18.5KW

Function : High Efficiency Low Cost

Advantage : High Performance

Material : Stainless Steel

Usage : water supply

Theory : Booster Pumps

Contact Now

Intelligent Control Durable Constant Pressure Frequency Convention Water Supply Equipment

Three core modules
(1) Non negative pressure steady flow device
Pressure balancing technology: Built in pressure sensor and vacuum suppressor, real-time monitoring of municipal pipeline pressure. When the inlet pressure is lower than the set value, the compensation mode is automatically activated to prevent negative pressure in the pipeline network
Anti backflow design: equipped with backflow preventer and dynamic balance valve to ensure the safety of municipal pipeline water supply
(2) Variable frequency speed regulation system
PID intelligent control: Real time calculation of the matching relationship between water consumption and pump speed through PLC controller, precise adjustment of pump operating frequency (0-50Hz), achieving "low flow low-frequency operation, high flow full speed operation"
Multi pump group linkage: supports combination modes such as 1 main and 1 backup/2 main and 1 backup, automatically rotates working pumps, and extends equipment life
(3) Human Computer Interaction Interface
7-inch color touch screen: real-time display of 20+parameters such as pipe network pressure, water supply flow rate, pump frequency, fault codes, etc
Remote monitoring function: Supports 4G/Wi Fi networking, enabling device status monitoring, parameter settings, and fault alarms through mobile apps or PC terminals
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Application
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Residential water:
such as high-rise buildings, residential neighborhoods, villas, etc.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Public places
such as hospitals, schools, gymnasiums, golf courses, airports, etc.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Commercial buildings
such as hotels, office buildings, department stores, large saunas, etc.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Irrigation
such as parks, playgrounds, orchards, farms, etc.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Manufacturing
e.g. manufacturing, washing installations, food industry,
factories, etc.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Industrial systems
such as sewage treatment systems, water treatment plants and pressurized pumping stations, air conditioning
circulatory systems, etc.
Details Images

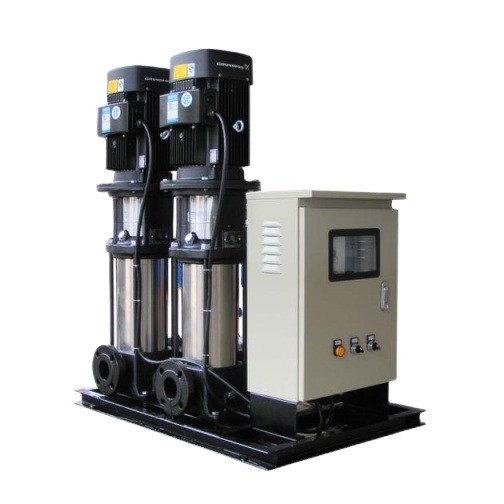

Non-negative pressure frequency conversion water supply system is generally composed of fours parts:
1. Water pump unit
2. Stainless steel flow stabilizer tank
3. Diaphragm pneumatic tank
4. Frequency conversion control cabinet
PID Intelligent Control Water Supply System With Constant Pressure Frequency PID Intelligent Control Water Supply System With Constant Pressure Frequency PID Intelligent Control Water Supply System With Constant Pressure Frequency PID Intelligent Control Water Supply System With Constant Pressure Frequency
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Constant pressure frequency conversion
water supply equipment
Water supply method:
Water tanks are required between the water supply equipment and the pipe network.
Quality of water supply:
Water in tanks is easy to be polluted and the water tanks are difficult to clean and maintain.
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Non-negative pressure frequency conversion
water supply equipment

Water supply method:
Adopt vacuum inhibition technology, so that the water supply equipment and water pipeline network are directly connected together and non-negative pressure produced.
Quality of water supply:
The system is self-closed system which ensure the quality of water supply.
Projects
PID Intelligent Control Water Supply System With Constant Pressure Frequency
PID Intelligent Control Water Supply System With Constant Pressure Frequency
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Why Choose Us
PID Intelligent Control Water Supply System With Constant Pressure Frequency
Factory Tour
PID Intelligent Control Water Supply System With Constant Pressure Frequency
